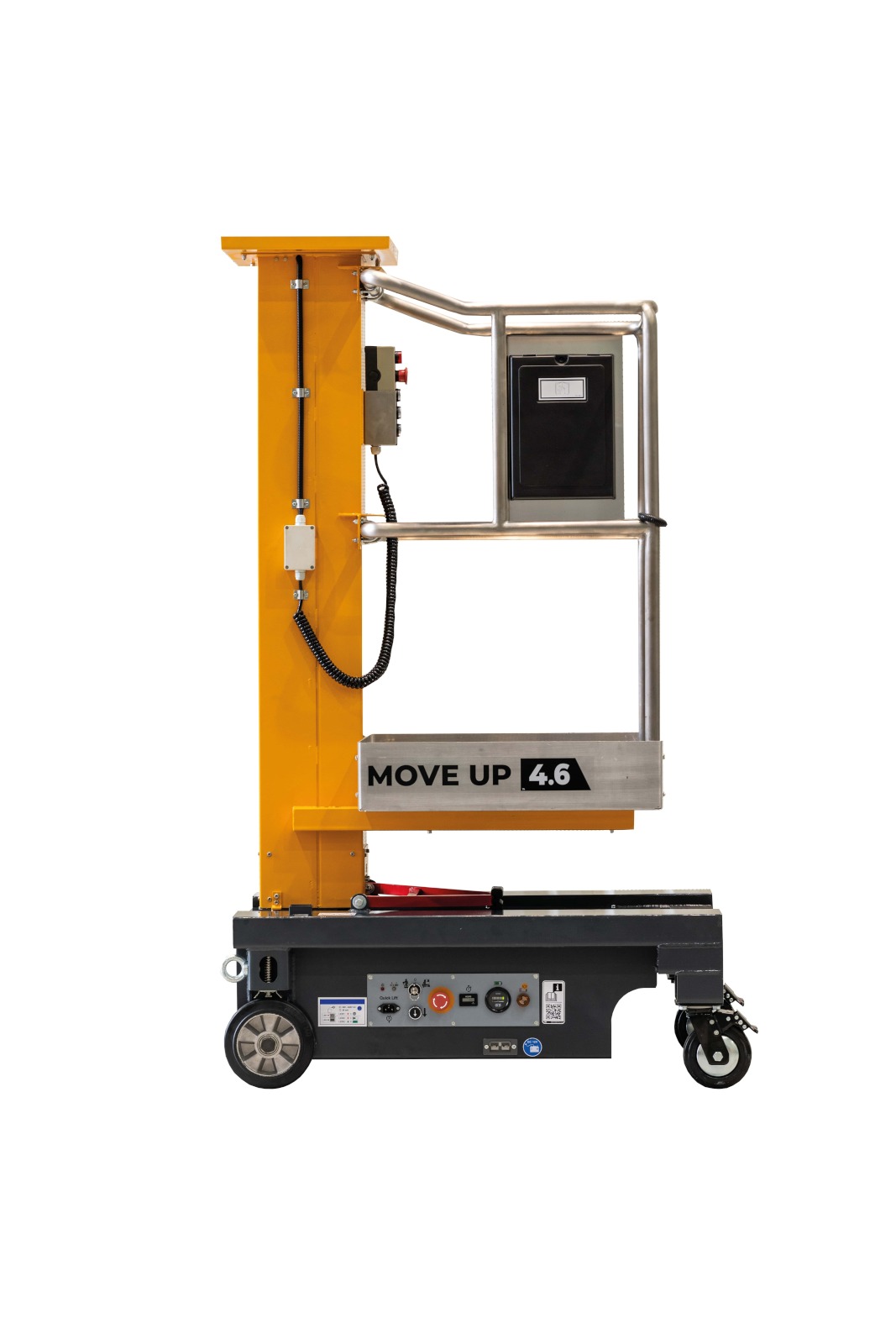

Push-arounds mastsMove Up 4.6

  • Electric
  • Even ground
  • Inside use
  • Finishings

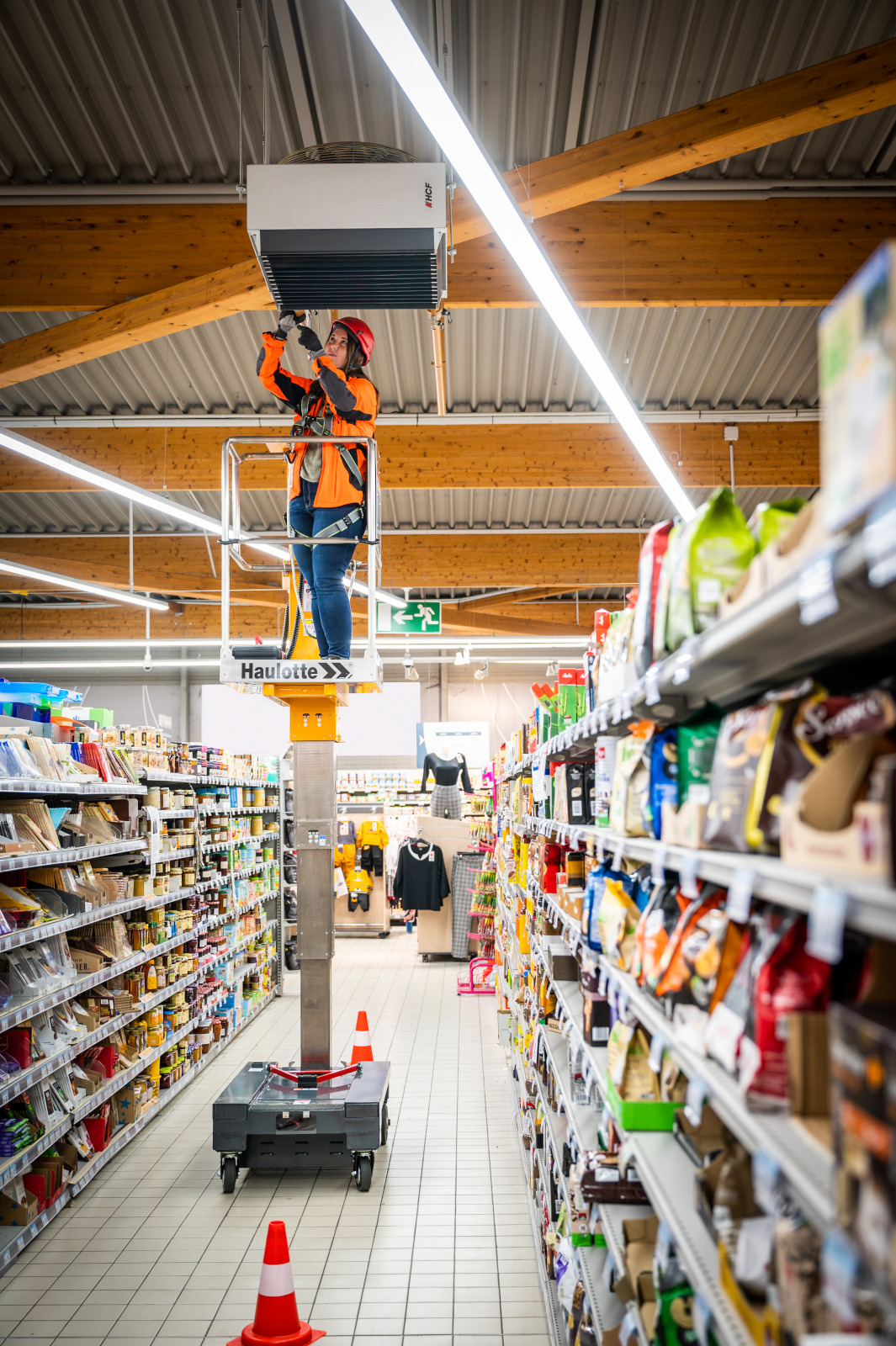

  • Logistics / Retail / Industry
  • Maintenance and restoration
  • Sporting and other events
  • Tiny machine, high productivity
  • Ultra compact design: fit through single doors, elevators...
  • Narrow turning radius to fit with confined spaces constraint
  • Lightweight to work on sensitive grounds or in multi-story projects
  • Low size, high agility
  • Small platform to work in tiny spaces
  • Heavy tools and material transportable at once : platform capacity up to 159 kg
  • Low maintenance, easy to use
  • No set up time, just push the machine where you want to use it
  • Maintenance free battery

Platform height 2.6 m
Lift capacity 159 kg (1 pers.)
Platform size 0.68 m x 0.66 m
Length 1.11 m
Width 0.7 m
Height - stowed 1.86 m
Wheel base 0.95 m
Ground clearance 6 cm
Tyres size (front / back) 150mm x 45mm / 200mm x 50mm
Turning radius - Inside 0 m
Weight 288 kg
Motion Push-Around - Manual
Tilt 1.5 °
Turning radius - Outside 1.2 m
Battery 12V DC - AGM

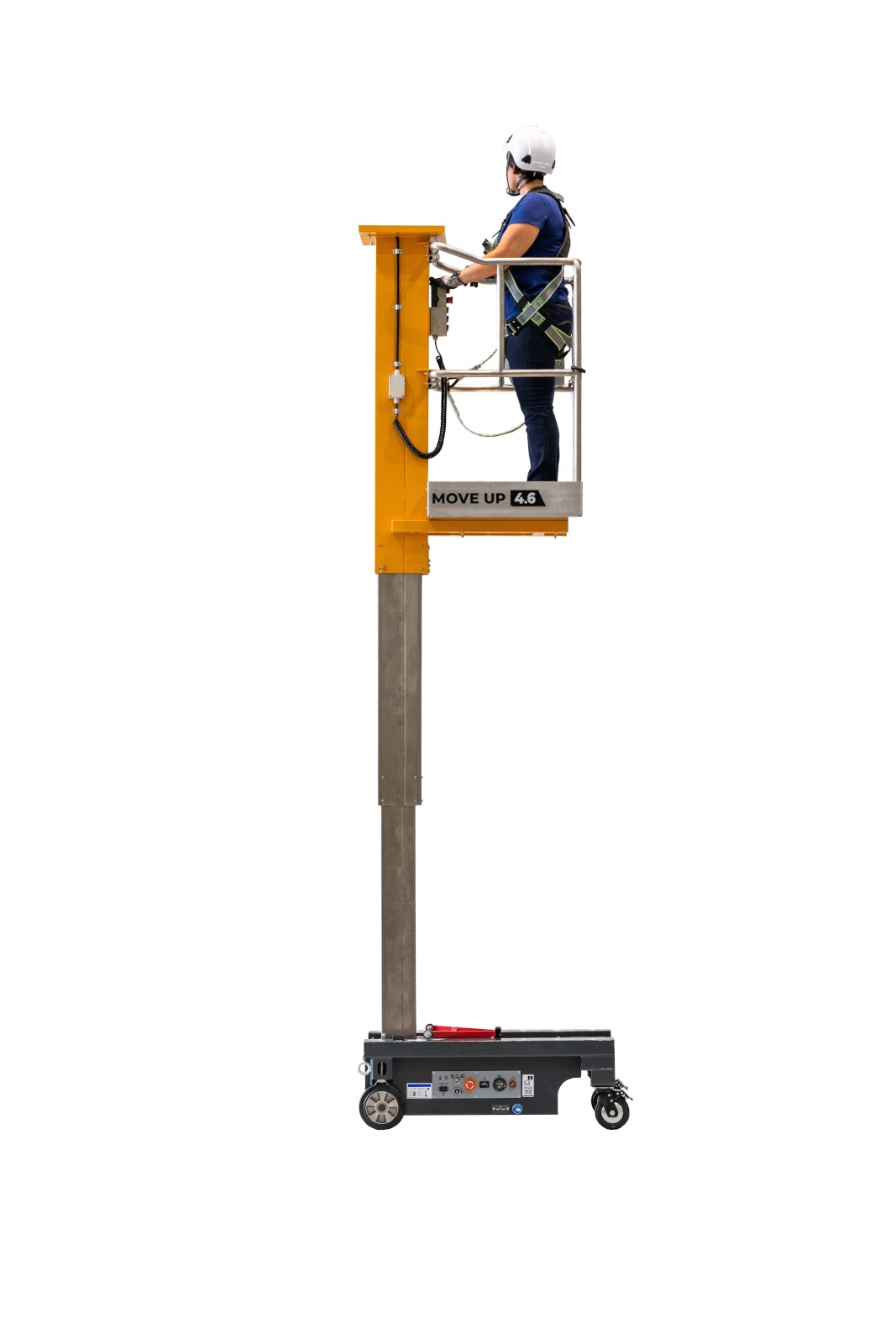

Working height 4.6 m
  • Electrically driven lifting
  • Manual horizontal motion (push around)
  • Maintenance free AGM battery
  • Battery charger > 15 Ah
  • Battery level indicator on lower control box
  • Battery charge indicator
  • 2 fixed wheels - 2 castor wheels
  • Mechanical wheel lock
  • Sliding bar
  • Mobile upper control box
  • Charger plug with dedicated storage box
  • Tilt indicator on upper control box
  • Emergency lowering descent
  • Hour meter
  • Forklift pockets
  • 15 kg tray
