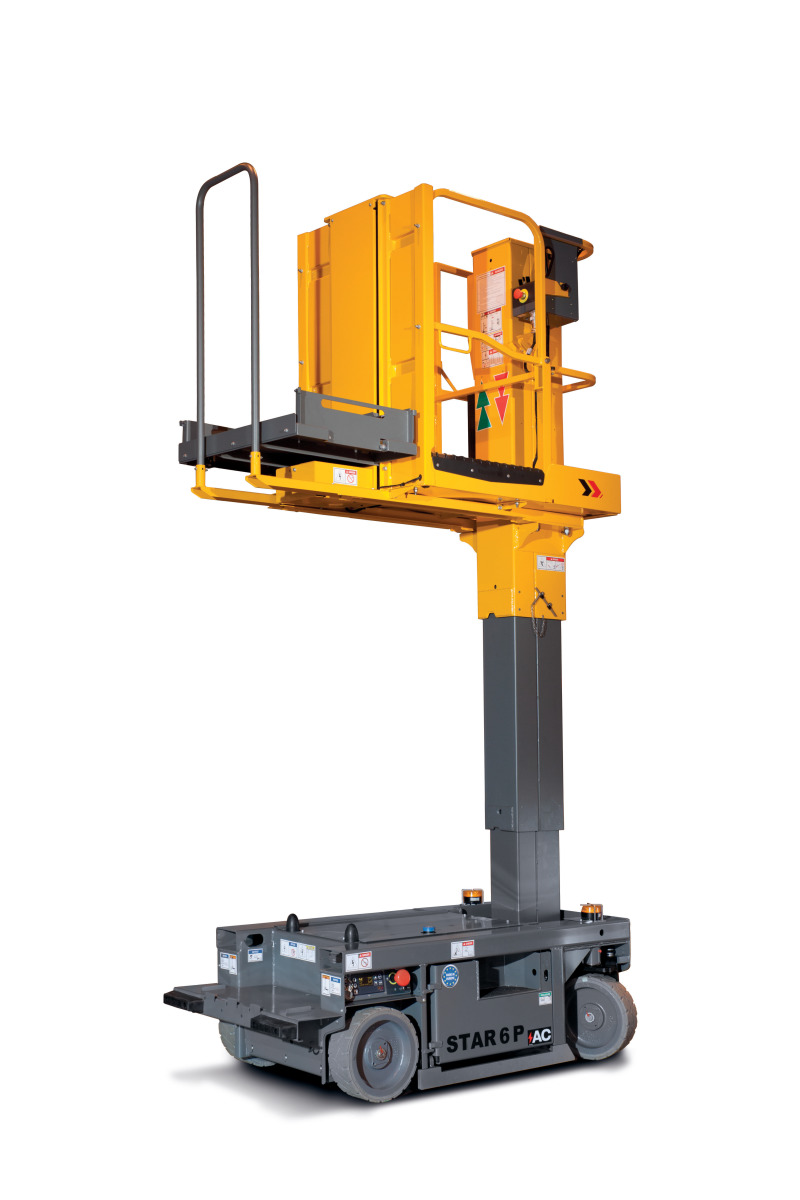

Vertical masts Star 6 PICKING

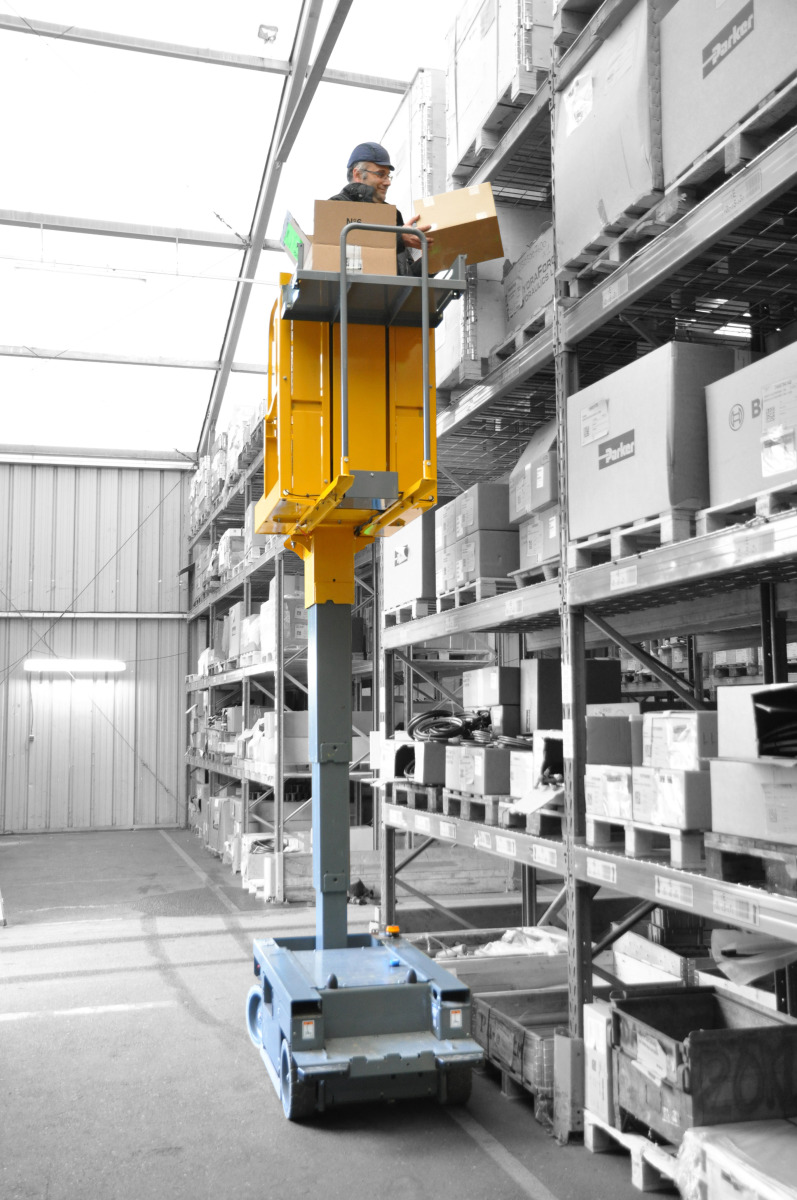

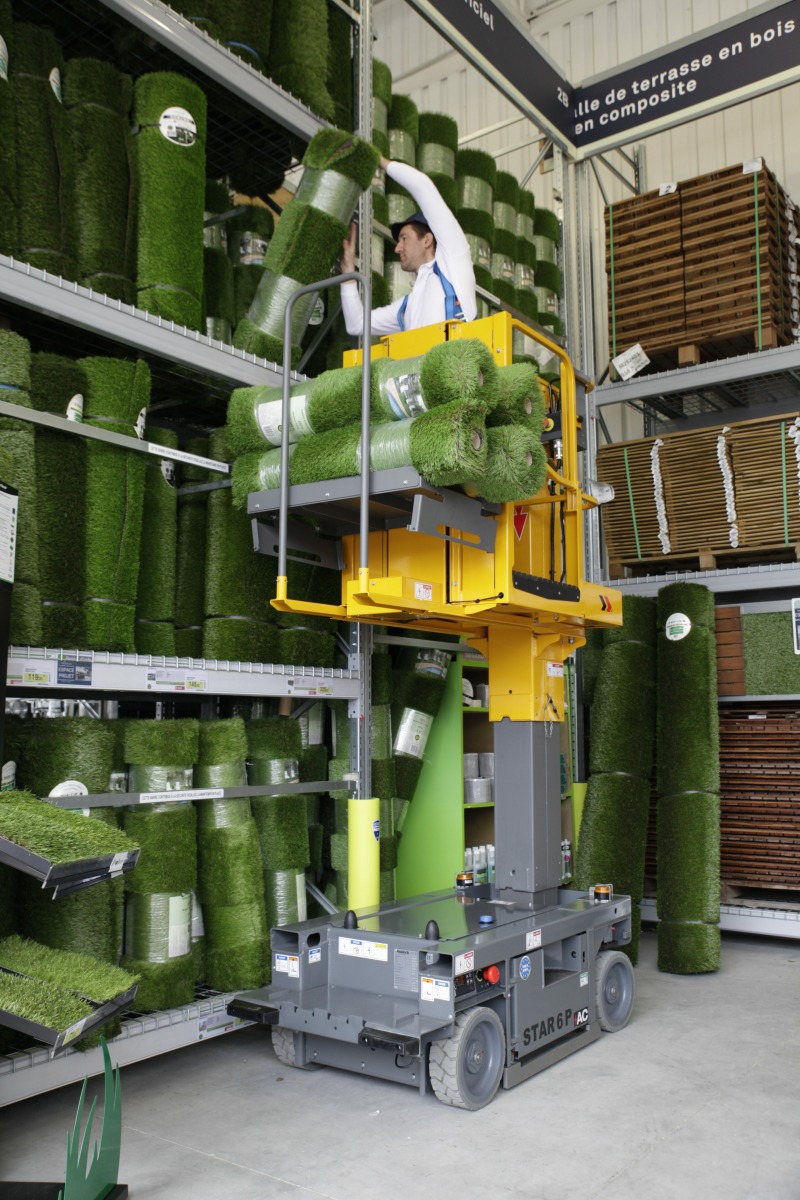

Agile, robust, easy to use and maintain STAR 6 PICKING is your partner in the distribution and logistics business. Equipped with a picking tray, this vertical mast is ideal for the distribution and logistics sectors: order preparation, stock management, shelving, decoration at points of sale,etc. The STAR range is equipped with asynchronous motors (AC) that combine proportionality and torque.

Product characteristics

Indoor

Indoor

Even ground

Even ground

Electric

Electric

Application fields

Logistic / Retail / Industry

Logistic / Retail / Industry

Maintenance & renovation

Maintenance & renovation

Star 6 PICKING

Presentation

  • Safety first
  • Go everywhere, anytime
  • With the best value for money

Specifications

Safety first

Safety first

  • Double "lambo" doors, dedicated anti-slip steps and walkable plinths
  • Picking tray with foldable side panels & front guard rail
  • High-precision driving and smoothness with maximal driving visibility
  • Quick machine with mobile pothole protections
Go everywhere, anytime

Go everywhere, anytime

  • Maximum load of electric picking tray: 80 kg
  • Intuitive upper control box with battery level indicator
  • Smart transportability & lifting
With the best value for money

With the best value for money

  • Haulotte Activ'Energy Management takes care of your batteries
  • 3-stage-cylinder mast: no chain and no cable
  • Direct electric drive (maintenance-free) AC motors
  • Easy access to components (2 swing out trays)
  • Haulotte Activ'Screen (onboard diagnostic)

Working height 5.8 m
Platform height 3.8 m
Lift capacity - inside 210 kg (1 pers.)
Platform size 0.76 x 0.92 m
Length 1.65 m
Width 0.79 m
Height - stowed 1.75 m
Wheelbase 1.07 m
Ground clearance 6 cm
Drive speed proportional 0.8 - 4.5 km/h
Turning radius - outside 1.7 m
Tilt alarm 1.5 ° / 3 °
Gradeability 25 %
Max driveable platf. height 3.8 m
Tyres - non marking 318 x 108 mm
Power source 4x6V - 180 Ah (C5)
Weight 890 kg
Picking tray size 0.74 x 0.50 m
Picking tray lift capacity 80 kg
Hydraulic system capacity 8 l
Star 6 PICKING
Star 6 PICKING

  • Haulotte Activ'Energy Management: Smart CAN charger
  • Electric picking tray with foldable side panels & front guard rail
  • 24 V electric drive brushless AC motors (free maintenance)
  • 4 x 6 V - 180 Ah batteries
  • Battery level indicator
  • Haulotte Activ'Screen
  • Fork lifting pockets
  • Hoisting and lifting points
  • Electric brake release
  • 2 "lambo" doors
  • Protection baseboards
  • Mobile potholes
  • 2 front steering wheels
  • 2 rear driving wheels
  • Non marking tires
  • Hourmeter
  • Horn
  • Travel alarm
  • Flashing light
  • Emergency stop
  • Lowering system
  • 2 upper control boxes (one is mobile)
  • Control boxes at cage and ground levels
  • Towing hook

  • Haulotte Activ'Energy Management: automatic or manual battery waterfilling systems
  • Order / stock picker equipment
  • Biodegradable oil
  • Hydraulic oil for cold conditions
  • Telematics ready
  • Pedestrian warning light
  • Double flashing light
